handheld electric screwdriver TCD

Torque Range：0.05-11Nm

Danikor’s industrial electric screwdriver provides the capability to set and store torque and angle data, ensuring the accuracy of tightening. It is a DC low torque screwdriver, suitable for manual assembly lines in industrial settings.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

Standard deviation accuracy over the full torque range.

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

Flexibility to respond to applications with different requirements.

Guarantee tightening quality.

Reduce setup time between different tightening requirements.

Automatically switch between different Psets

Intelligent

Record and monitor the data of full tightening process.

Real-time data upload

Real-time docking with MES system.

Data storage

You can hold more quantities and filter the number of results that are analyzed for a given program or time period.

Data traceability

Multiple curves are superimposed to facilitate depth analysis.

Error-proofing

Monitoring of abnormal tightening process

All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Job planning and superposition protection

If Job batch is inconsistent, it is required to enter password for intervention.

Convenient

Automatically learn

Automatically recommend the reference parameter range, and quickly build the tightening strategy.

Superior human-computer interaction

Visual OLED display screen,3-color light (such as NG red), buzzer and front light is convenient for operators to use.

Multiple startup forms

It can be handheld or fixed with machine, and handheld can be pressed down,triggered or remotely activated.

Rapid expansion port

Threaded external connection for quick matching vacuum suction nozzle and a fixed structure.

Multiple communication forms

RS485 RTU, TCP/IP open Protocol, extended digital I/O interface.

Multiple functions optional

Optional teaching pendant or communication module, real-time data viewing and parameter setting.

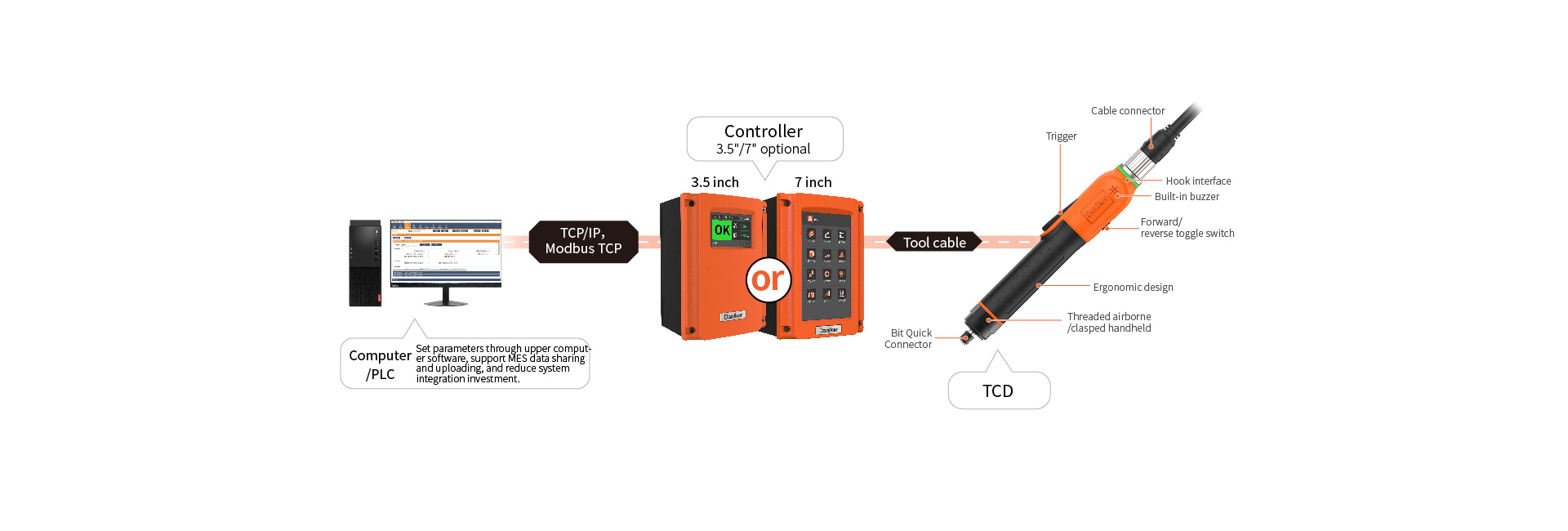

Product Structure

Product Parameters

Model	Max torque /Nm	Max speed /rpm	Dimension /mm	Grip diameter /mm	Weight /g	Design life	MTTF	Bit quick connector	Starting mode	Screw driver controller	Screw driver cable
PTC-DSH-1800M-32-HMP-000-G2	0.05-0.18	1500	238×36	32	436	＞10 million	＞1 million	HM4	Pushed/Remote	OPT-STC-DC 1-V2- 500W	OPT-SCT -V2- DC1-05
PTC-DSH-5000M-32-H1P-000-G2	0.1-0.7	1500	241×36	32	466			Hex 1/4"
PTC-DSH-0020N-32-H1P-000-G2	0.7-2	950	241×36	32	486
PTC-DSH-0040N-39-H1P-000-G2	1-4	900	266.3×46	39	632
PTC-DSH-0070N-39-H1P-000-G2	1.6-7	900	266.3×46	39	717					OPT-STC-DC 2-V2- 500W	OPT-SCT-V2-DC 2-05
PTC-DSH-0110N-39-H1P-000-G2	2-11	700	266.3×46	39	827					OPT-STC-DC 2-V2- 500W	OPT-SCT-V2-DC 2-05
PTC-DSH-1800M-32-HMD-000-G2	0.05-0.18	1500	242.2×36	32	465	＞10 million	＞1 million	HM4	Pushed/Pressed/Remote	OPT-STC-DC 1-V2- 500W	OPT-SCT -V2- DC1-05
PTC-DSH-5000M-32-H1D-000-G2	0.1-0.7	1500	246.9×36	32	495			Hex 1/4"
PTC-DSH-0020N-32-H1D-000-G2	0.7-2	950	246.9×36	32	515
PTC-DSH-0040N-39-HMP-000-G2	1-4	900	279.5×46	39	765
PTC-DSH-0070N-39-H1D-000-G2	1.6-7	900	279.5×46	39	850					OPT-STC-DC 2-V2- 500W	OPT-SCT-V2-DC 2-05
PTC-DSH-0110N-39-H1D-000-G2	2-11	700	279.5×46	39	960					OPT-STC-DC 2-V2- 500W	OPT-SCT-V2-DC 2-05
